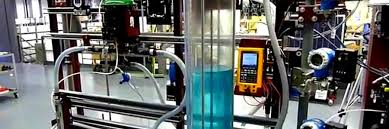

- Instrumentation for Advanced Industrial Applications.jpg (14.74 KiB) Viewed 313 times
Instrumentation involves devices and systems that measure and control variables such as temperature, pressure, flow, level, and chemical composition. Core Functions:
- Measurement: Accurate sensing and quantification of process variables.
- Control: Maintaining processes within desired parameters.
- Data Acquisition: Collecting and storing process data for analysis.
- Monitoring and Diagnostics: Real-time process and equipment health monitoring.
Modern industrial applications rely heavily on smart sensors and transmitters for enhanced functionality and communication. Features:
- Self-Calibration: Automatic adjustment for accuracy.
- Self-Diagnosis: Identifies sensor malfunctions or calibration errors.
- Wireless Communication: Enables real-time data transmission without physical wiring.
- Integration with IoT: Provides connectivity for remote monitoring and control.
- Temperature sensors for furnaces and boilers.
- Pressure transmitters in pipelines and reactors.
- Flow meters in water treatment and chemical industries.
Accurate flow measurement is critical in industries like oil & gas, water management, and pharmaceuticals. Techniques:
- Ultrasonic Flow Meters:
- Use sound waves to measure flow velocity.
- Ideal for clean and slurry fluids.
- Coriolis Flow Meters:
- Measure mass flow rate using the Coriolis effect.
- Suitable for high-accuracy applications like chemical dosing.
- Magnetic Flow Meters:
- Operate on Faraday's law of electromagnetic induction.
- Best for conductive fluids in water and wastewater management.
- Thermal Mass Flow Meters:
- Measure the mass flow rate of gases using thermal properties.
- Common in HVAC and gas distribution systems.
Non-contact measurement techniques are increasingly popular for applications where direct contact is impractical or hazardous. Examples:
- Infrared Thermography:
- Measures surface temperatures remotely.
- Used in predictive maintenance and furnace monitoring.
- Laser Doppler Velocimetry (LDV):
- Measures flow velocity using laser beams.
- Applied in fluid mechanics research and high-precision processes.
- Radar Level Measurement:
- Uses radar waves to determine the level of liquids and solids.
- Common in storage tanks and silos.
- Ultrasonic Level Sensors:
- Emit ultrasonic pulses to measure levels.
- Ideal for non-invasive level measurement.
Analyzing chemical composition is vital in industries like petrochemicals, food processing, and environmental monitoring. Analytical Instruments:
- Gas Chromatographs:
- Separate and analyze volatile compounds in gas or liquid samples.
- Mass Spectrometers:
- Identify chemical compositions by measuring mass-to-charge ratios.
- Spectrophotometers:
- Measure light absorption to determine concentrations of specific substances.
- pH and Conductivity Meters:
- Monitor acidity and ionic conductivity in processes like water treatment.
Wireless technologies are revolutionizing instrumentation by eliminating physical wiring and enabling remote operation. Benefits:
- Reduced installation and maintenance costs.
- Enhanced flexibility for reconfiguring systems.
- Real-time monitoring in remote or hazardous locations.
- Wireless HART: Provides secure, interoperable wireless communication.
- ISA100.11a: Designed for industrial automation and process control.
- ZigBee: Low-power communication for IoT-enabled devices.
In hazardous environments like oil refineries and chemical plants, intrinsically safe instruments are used to prevent explosions. Features:
- Low energy design to avoid igniting flammable substances.
- Compliance with safety standards like ATEX and IECEx.
- Suitable for gas, dust, and vapor-filled environments.
- Pressure transmitters in oil and gas pipelines.
- Temperature sensors in chemical reactors.
- Flow meters in explosive atmospheres.
Calibration ensures that instruments maintain their accuracy over time. Regular maintenance extends their lifespan and prevents process interruptions. Calibration Techniques:
- Primary Calibration: Direct comparison with a primary standard.
- Secondary Calibration: Comparison with a reference device.
- In-Situ Calibration: Performed without removing the instrument from the process.
- Predictive Maintenance: Uses sensor data and analytics to predict failures.
- Preventive Maintenance: Scheduled checks and adjustments.
- Reactive Maintenance: Addressing failures after they occur.
Modern instrumentation integrates with digital systems to provide actionable insights through data analytics. Key Trends:
- Industrial IoT (IIoT):
- Enables seamless data flow from instruments to cloud platforms.
- Allows remote monitoring and predictive analytics.
- Edge Computing:
- Processes data locally at the instrument or controller level.
- Reduces latency for real-time decision-making.
- Big Data Analytics:
- Extracts trends and patterns from large datasets.
- Optimizes process efficiency and reduces downtime.
Challenges:
- Harsh Environments: Instruments must withstand extreme temperatures, pressures, and corrosive conditions.
- Data Security: Protecting sensitive data in IoT-enabled systems.
- Integration Complexity: Ensuring compatibility between legacy and modern systems.
- Miniaturization: Smaller, more energy-efficient instruments.
- Artificial Intelligence: Advanced algorithms for anomaly detection and process control.
- Energy Harvesting: Instruments powered by ambient energy sources like vibrations and heat.
- Sustainability: Developing eco-friendly materials and designs.
