GENERAL ANATOMY - BONE

• The skeleton is composed of cartilage and bones. Bone is a living tissue, It is a highly specialized, hard form of connective tissue that makes up most of the skeletal system in the adult.
• The skeletal system has two functional parts:-
  • Axial Skeleton - eg: Skull, Hyoid bone, Vertebral column, Thoracic (rib) cage.
  • Appendicular Skeleton -  eg: Limbs, Girdles.

Alizarin red Stain.jpg (5.33 MiB) Viewed 60 times

FUNCTIONS OF BONE:

1. Support - for the body.
2. Protection - for vital structures.
3. Movement - the mechanical basis (leverage).
4. Storage - salts e.g. calcium.
5. Blood cell production – by the bone marrow.


HISTOLOGY OF BONE:

1. Mineralized matrix.
2. Living cells Bone matrix includes:

Inorganic.

• Hydroxapatite [Ca10(PO4)6(OH)2]
• Calcium carbonate [CaCO3].
• Small amounts of magnesium, sodium, potassium, fluoride, sulfate, carbonate and hydroxide ions.

Organic:

• Collagen and proteoglycans

TYPES OF BONE:

1. Compact Bone.
2. Spongy (trabecular or cancellous) bone.

• Distinguished by the relative amount of solid matter and by the number and size of the spaces they contain.
• All bones have a superficial thin layer of compact bone around a central mass of spongy bone.


COMPACT BONE:

• Provides strength for weight bearing.
• Consists of Haversian Systems or Osteons.
• In long bones the amount of compact bone is greatest near the middle of the shaft.
• At the ends of the bone there is a thin covering of compact bone.
• Haversian systems have layers of bone called lamellae surrounding central Haversian canal Perforating or Volkmann’s canals lie perpendicular to the long axis.

CANCELLOUS OR SPONGY BONE:

• Consists of a meshwork of trabeculae (trabecular bone) oriented along lines of stress.
• The spongy bone may be replaced by a medullary  (marrow) cavity filled with marrow.
• At birth all bones have red marrow with active haematopoesis.
• With age this is replaced by yellow fatty marrow with no power of haematopoeis.
• Ends of long bones, sternum, ribs, vertebrae retain red marrow throughout l

CLASSIFICATION OF BONES(According to shape):

Long bones:

• They are tubular.
• Have a shaft and 2 ends.
• Humerus,Femur radius, ulna etc.

Short bones:

• Cuboidal.
• Seen at wrist (carpals) and ankle (tarsals).

Miniature Long bones:

• Look like long bones.
• Have only 1 primary and 1 secondary ossification centre.
• Metacarpals, Metatarsal and phalanges.

Flat bones:

• Serve protective functions
• Bones of skull vault like Parietal bone
• Sternum

Irregular bones:

• Have various shape
• Vertebrae
• Hip bone

Sesamoid bones:

• Develop in certain tendons and are found where tendons cross the ends of long bones.
• Protect the tendons from excess wear.
• Often change the direction of pull of the tendon.
• Patella, Pisiform bone.

 Accessory bones or supernumerary bones:

• When additional ossification centres appear or a part of a bone fails to fuse with the main part.
• In skull along sutural lines: Sutural or Wormian bones.
• Also sometimes found in the foot FABELLA- Usually seen embedded in lateral head of gastrocnemius that articulates directly with lateral femoral condyle.

Pneumatic Bones:

• Contain air filled spaces lined with epithelium.
• Eg:–Maxilla, Ethmoid, Sphenoid, Frontal bone.

Heterotopic bones:

• Bones which form in soft tissue due to trauma.
• Eg: horse riders develop bones in their thighs (riders’ bones).

CLASSIFICATION OF BONE((Developmental):

• Membranous Ossification: Ossify from mesenchyme arranged as sheets or membranes.
  • E.g. Flat bones.

Intramembranous ossification.jpg (5.41 MiB) Viewed 60 times

• Cartilaginous or Endochondral ossification:
  • The mesenchyme forms cartilage models which later ossify.
  • E.g. Long bones , Bones of the base of skull.
• Short bones ossify from only a primary ossification centre, Exception- Calcaneum which also has a secondary centre.
• Most secondary centres appear after birth, Exception- the centre for the lower end of the femur which appears just before birth.

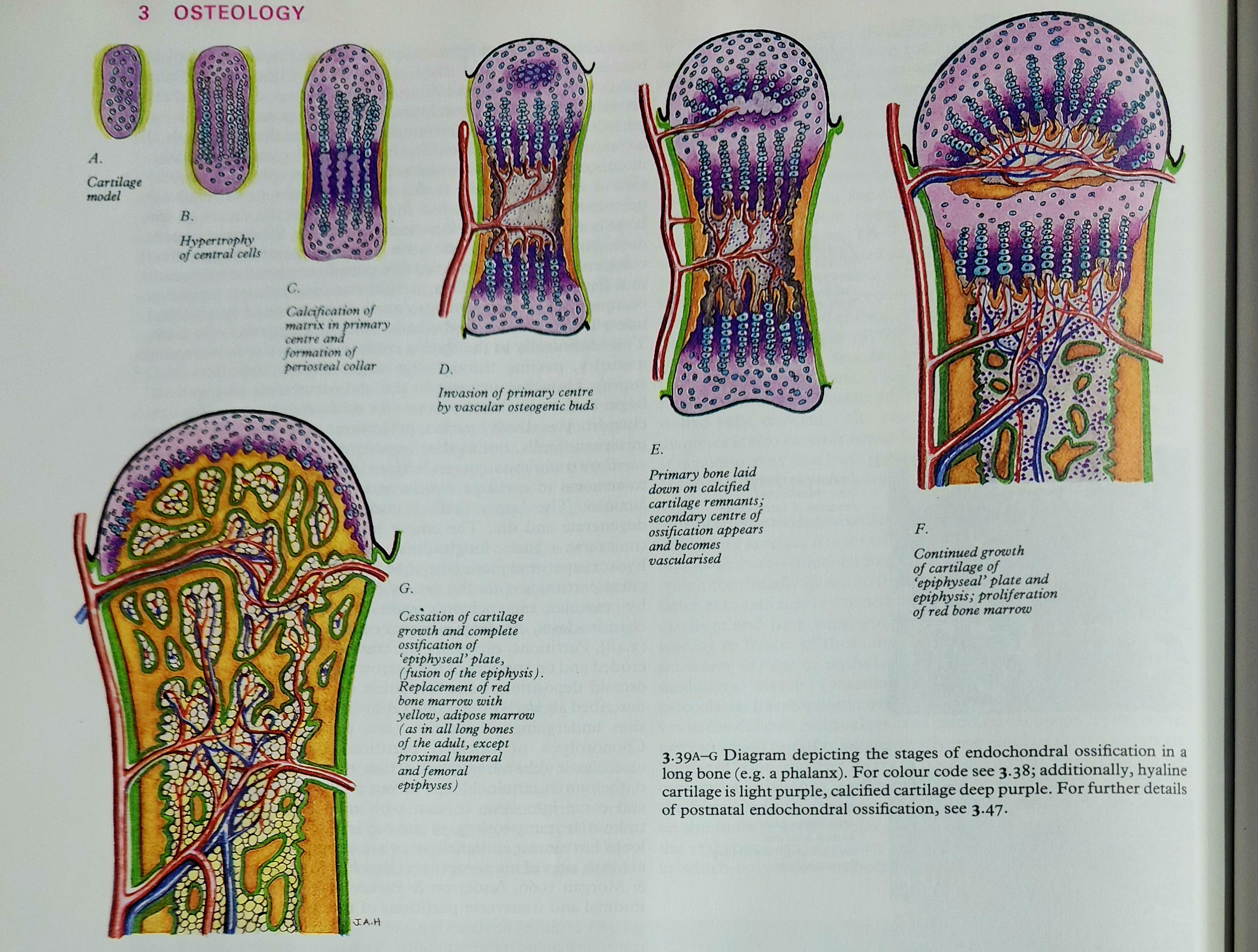

ENDOCHONDRAL OSSIFICATION- GRAY'S ANATOMY.jpg (7 MiB) Viewed 60 times

LAW OF OSSIFICATION:

• The secondary centre which is the first to appear, unites last, Exception- Secondary centre for lower end of Fibula appears first and fuses first.

TYPES OF EPIPHYSIS:

1. Pressure Epiphysis: At sites of pressure.
   • eg: Ischial tuberosity, Femoral condyles.
2. Traction Epiphysis: Because of pull of muscles.
   • eg: Tubercles of humerus, Trochanters of femur.
3. Atavastic Epiphysis: Ancestrally was a separate bones but have fused with neighboring bone.
   • eg: Corocoid process of scapula.
4. Aberrant Epiphysis: The epiphysis of first metacarpal is normally at the base but may be aberrant at the head

Zones of Epiphysis- Chondrolysis.jpg (1.3 MiB) Viewed 60 times

BLOOD SUPPLY OF BONE:

1. Nutrient arteries: pass obliquely through the compact bone of the shaft of a long bone via nutrient foramina supply the deeper parts of the bone, the nutrient artery is directed away from the growing end of the long bone.​​​​​
2. Epiphyseal arteries: From arteries supplying the joints
3. Metaphyseal arteries: From neighbouring vessels, Reinforce the nutrient artery.

Blood supply of Long bones.jpg (5.77 MiB) Viewed 60 times

TAKE HOME MESSAGE

1. DEFINE HILTON’S LAW,GIVE EXAMPLES
2. TYPES OF OSSIFICATION WITH EXAMPLES
3. TYPES OF EPIPHYSIS WITH EXAMPLES
4. LAW OF OSSIFICATION
