Arches of the Foot


[/b]

Functions

• Transmission of weight
• Distribution of weight
• Adds resilience
• Aids propulsion in gait
• Adaptability on uneven surfaces

Must know

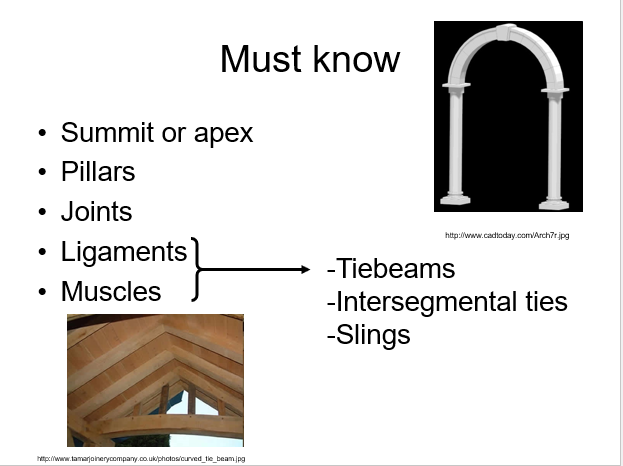

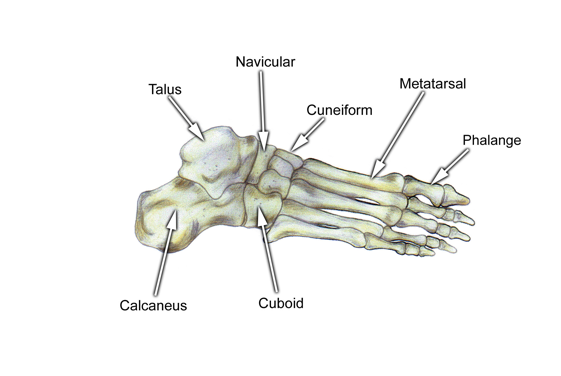

• Bones of the foot
• Joints of the foot
• Ligaments
• Muscle attachments





.
Functions of foot

• weight bearing
• propulsion
• a high degree of stability and flexibility.

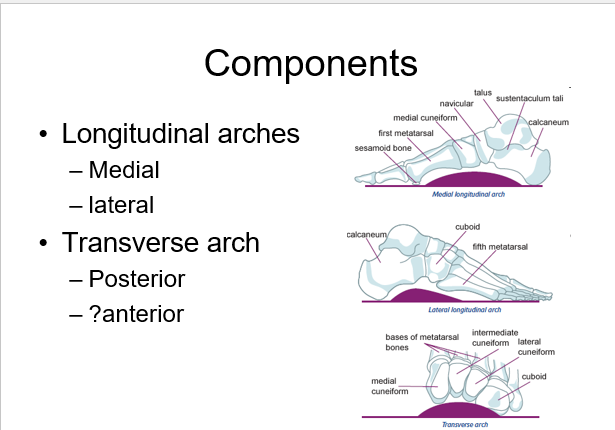

• three arches.
  • Longitudinal
    • Medial
    • Lateral
  • Transverse


Function of the arches

1. form a stable support to stand on with minimal muscular effort.
   •  for proportional  distribution of weight  to the ground
2. makes the foot flexible, so that it can adapt  to uneven surfaces.
3. make the foot a segmented effective lever as it pushes off the ground.
4. protect the structures in the foot.
5. act as a shock absorber when landing from a height. Adds resilience (elasticity).6) arched foot is dynamic & pliable.

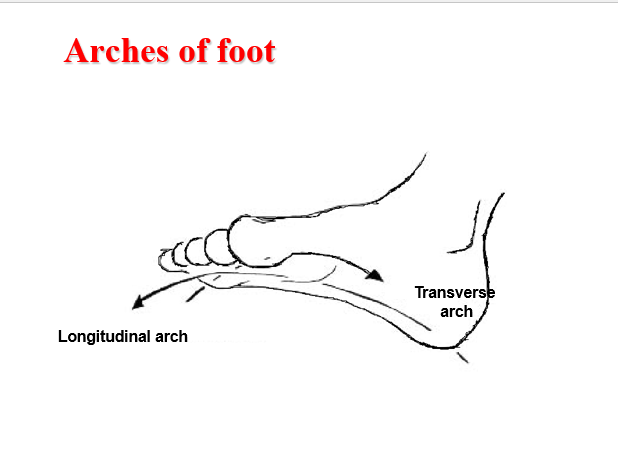

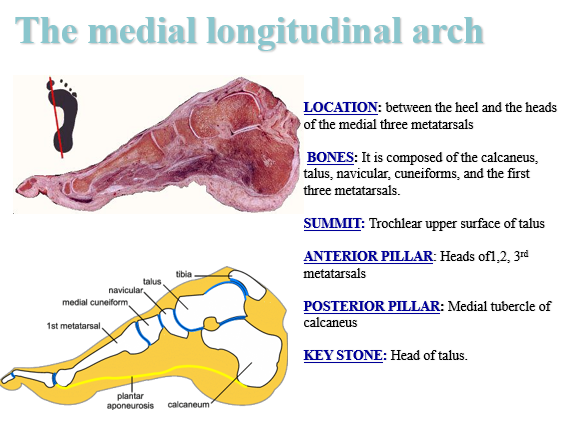

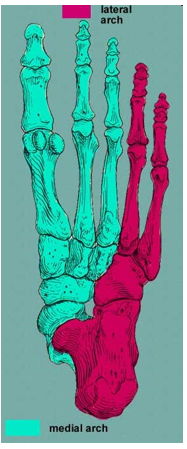

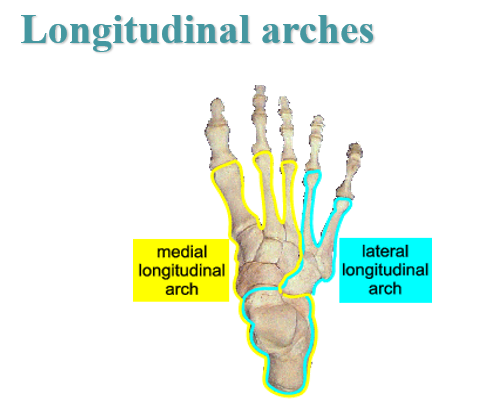

Medial  longitudinal arch

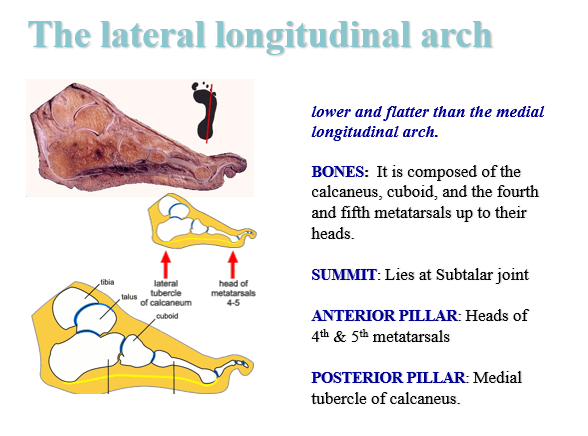

Lateral longitudinal arch

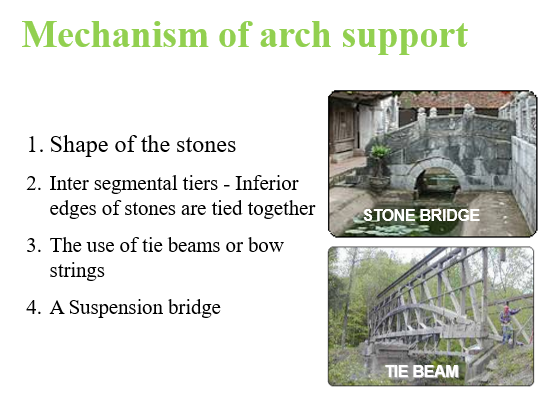

Factors maintaining the arch:

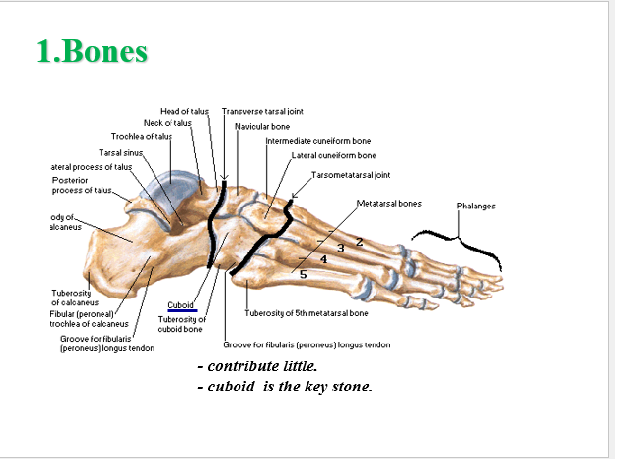

• Bones

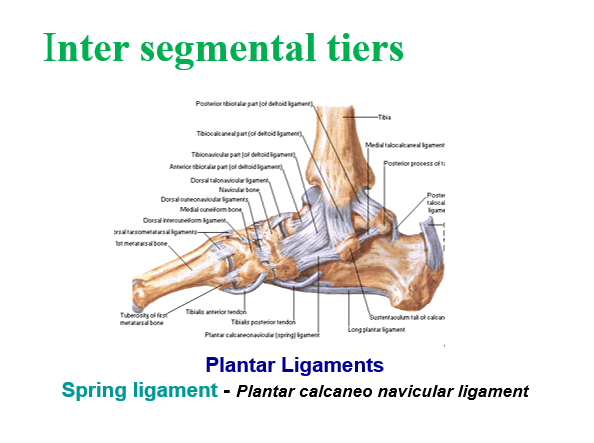

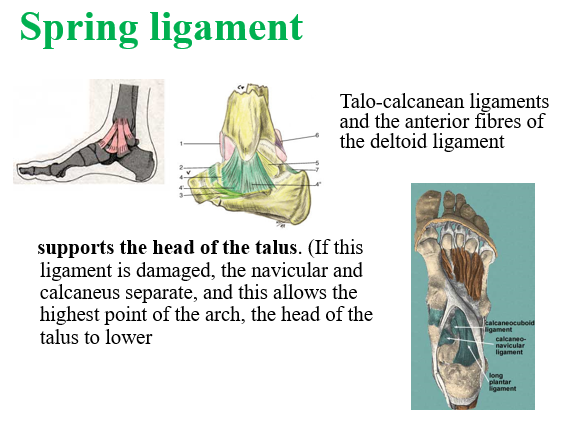

• Inter segmental tiers

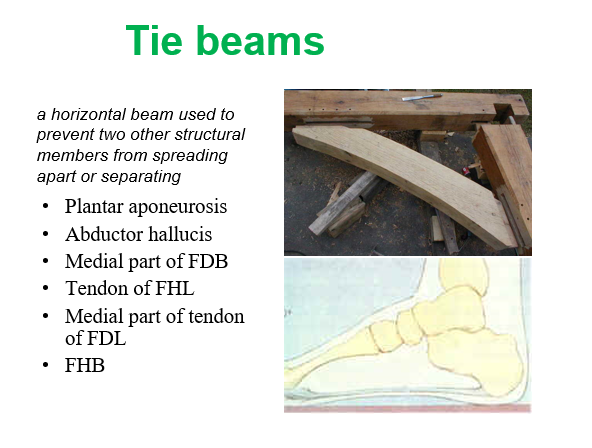

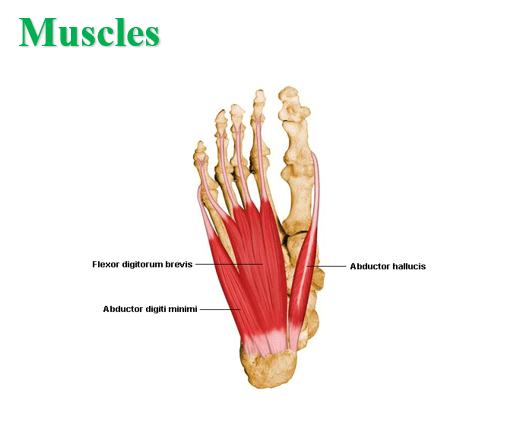

• Tie beams

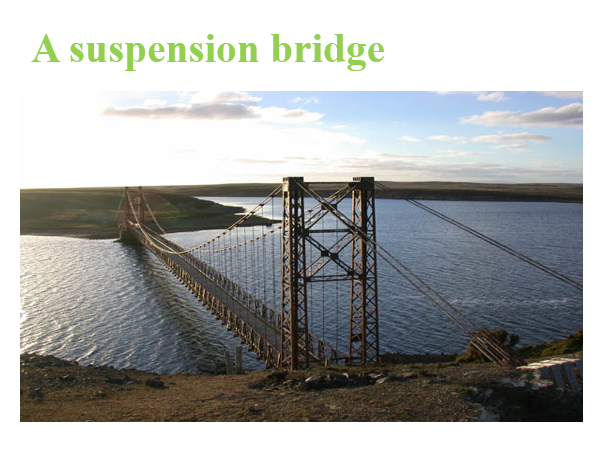

• Acting from above

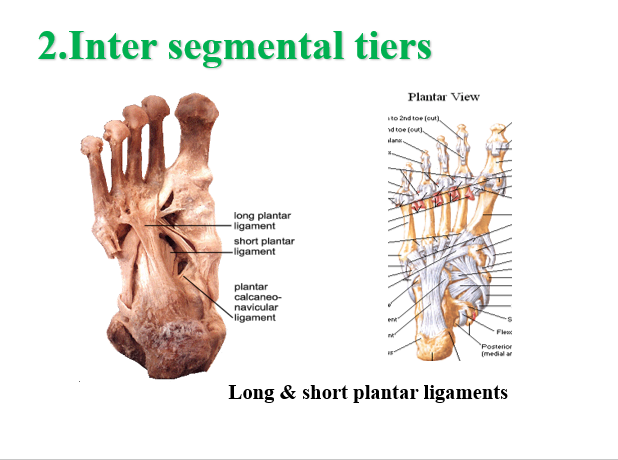

inter segment tiers.png (164.6 KiB) Viewed 287 times

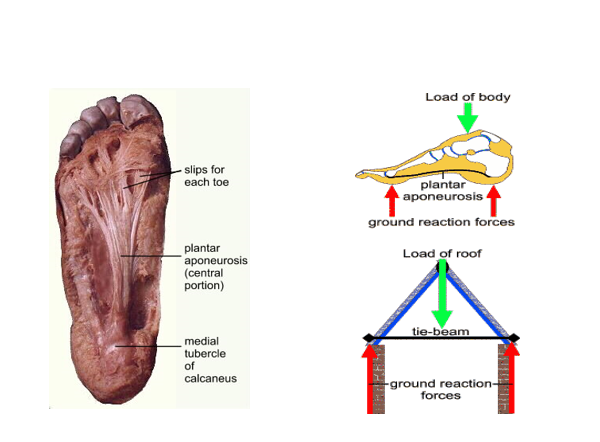

tie beams.png (81.11 KiB) Viewed 287 times

acting from above.png (122.47 KiB) Viewed 287 times

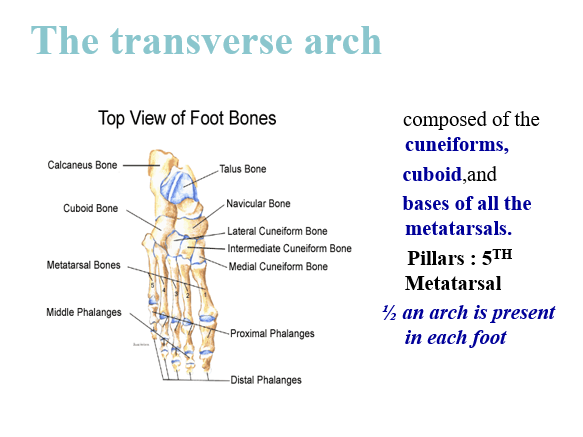

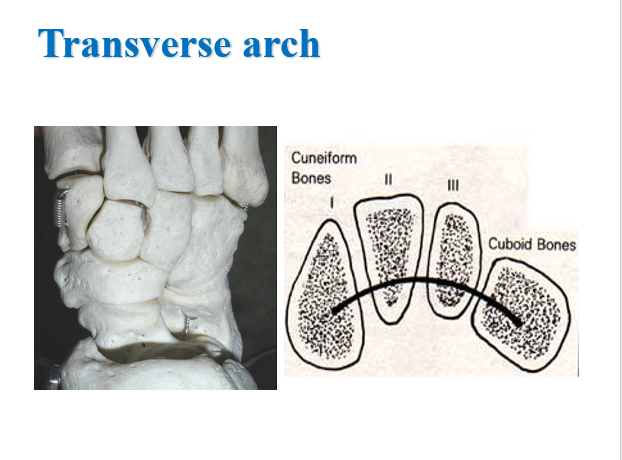

Transverse arch

transverse arch.png (254.63 KiB) Viewed 287 times

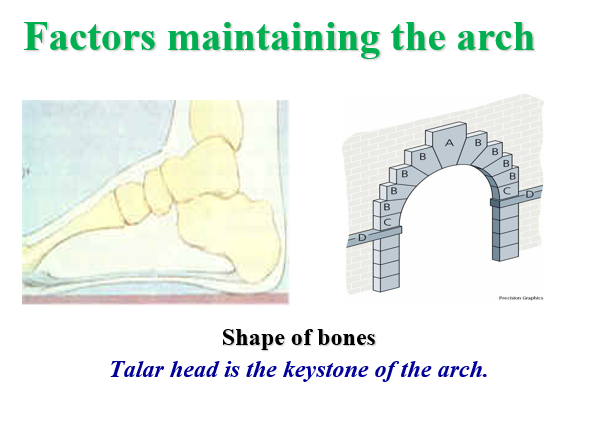

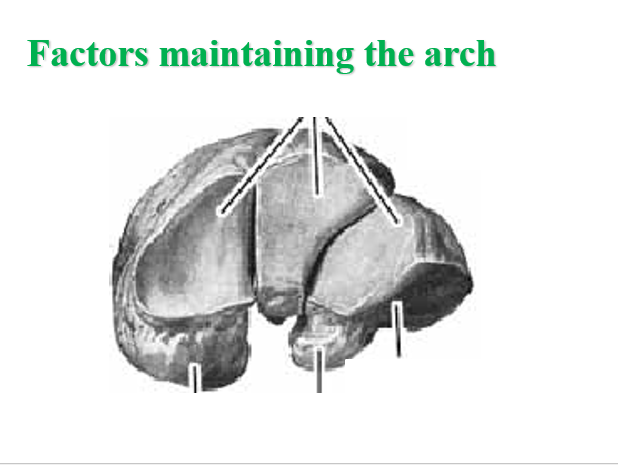

factors maintaing the arch.png (120.31 KiB) Viewed 287 times

Factors maintaining the arch

1. Bones: the intermediate cuneiform and lateral cuneiforms are wedge shaped and thus adapted to maintain this arch.
2. Inter segmental tiers: Ligaments – which hold the cuneiforms and metatarsal bases (plantar ligaments).

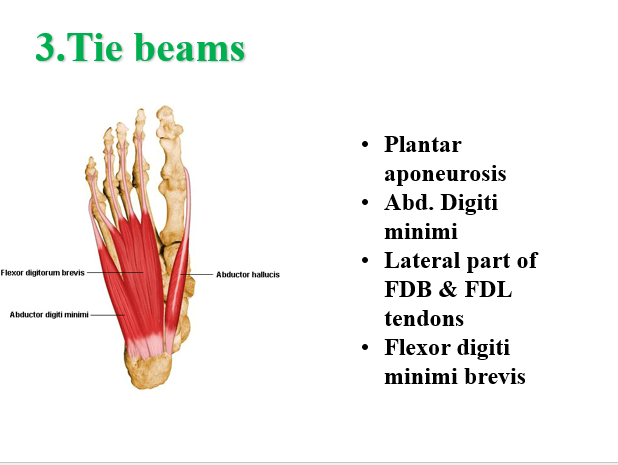

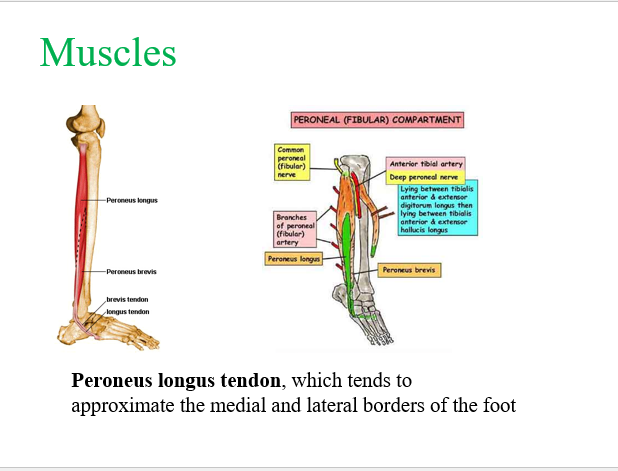

3. Tie beam:   Tendons of PL & TP.

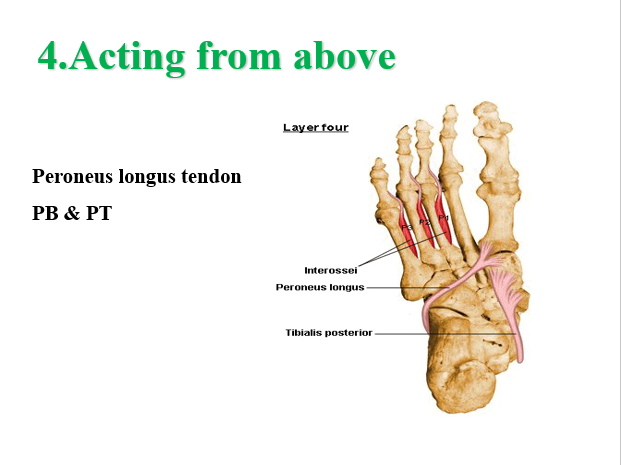

4. Acting from above:
   • PT & PB On lateral side.
   • TA  on medial side.




• A shallow transverse arch is maintained at the metatarsal heads by
  • a) the deep transverse metatarsal ligament,
  • b) transverse fibres that hold together the digital slips of the plantar aponeurosis and
  • to a lesser extent by the transverse head of the adductor hallucis

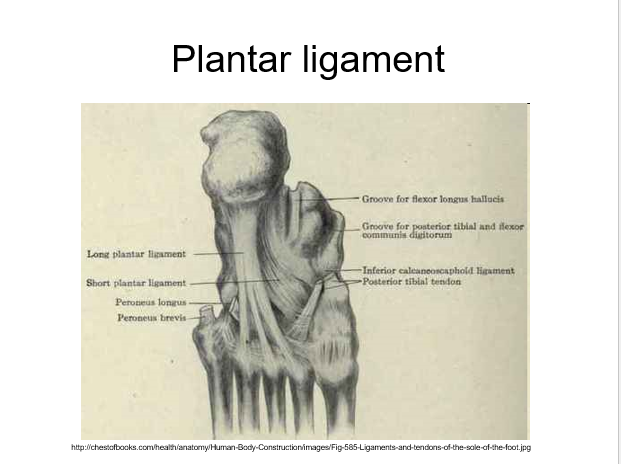

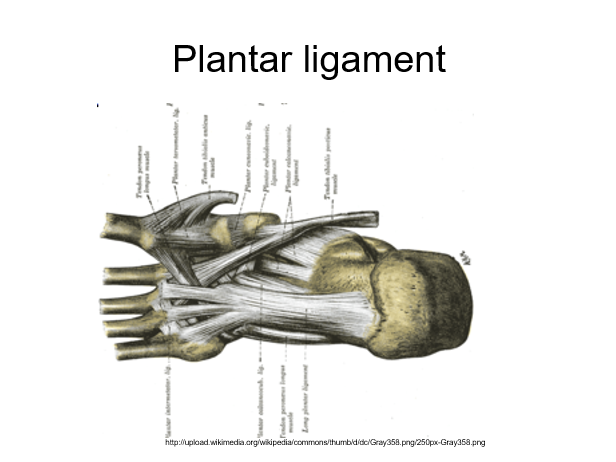

plantar ligament.png (152.73 KiB) Viewed 287 times

plantar ligament 2.png (194.37 KiB) Viewed 287 times

Movements

• Plantar flexion / dorsiflexion
• Eversion / Inversion
• Forefoot adduction / abduction
• Pronation / supination

Applied Anatomy

• Pes planus/ pes cavus
• Congenital talipes equino varix (CTEV)
• Talipes calcaneus
• Talipes valgus

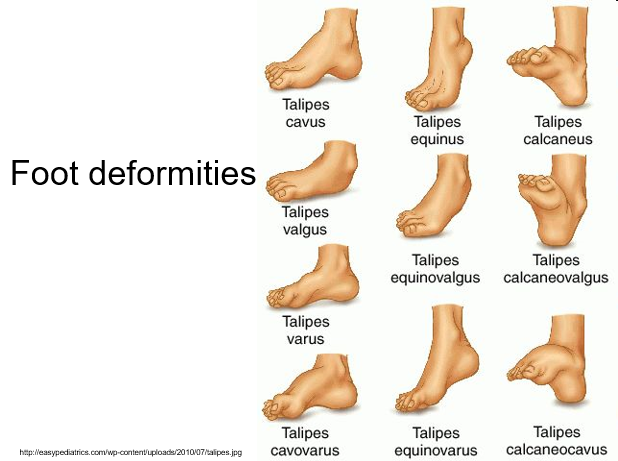

foot deformites.png (222.64 KiB) Viewed 287 times

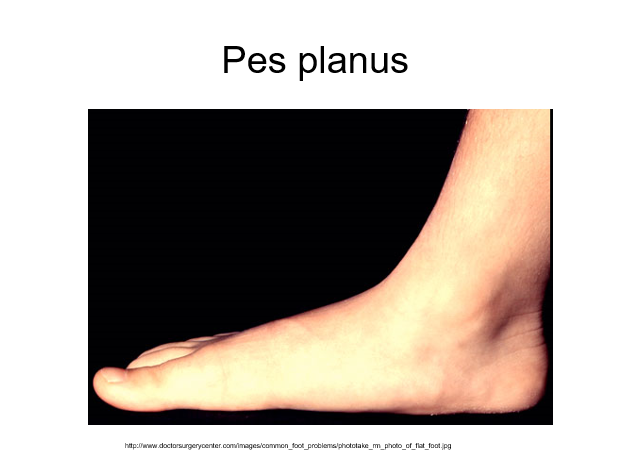

pes planus.png (157.19 KiB) Viewed 287 times

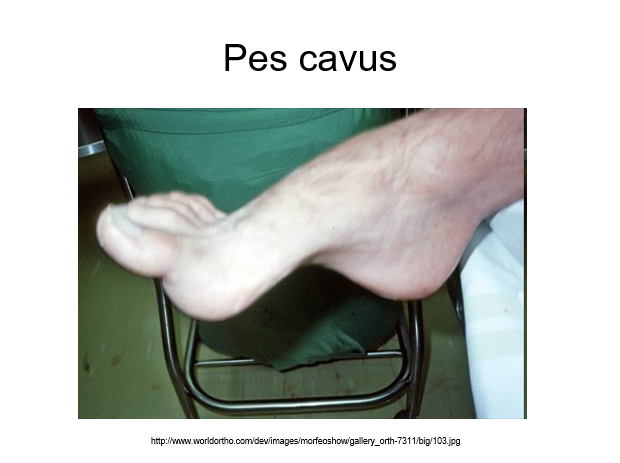

pea cavus.png (288.64 KiB) Viewed 287 times


Gait

• Stance
  • Heel strike
  • Midstance
  • Propulsion
• Swing

Hip joint

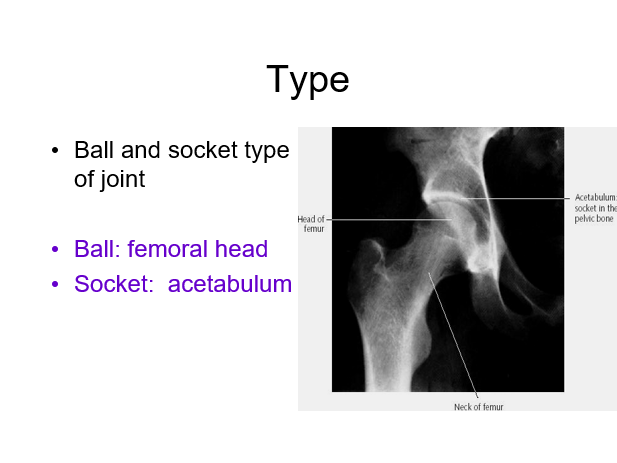

• Type
• Articulating surfaces
• Ligaments and Factors maintaining stability
• Relations and Bursae
• Vascular supply & Lymphatic drainage
• Innervation
• Movements & muscles producing the movements
• Applied anatomy

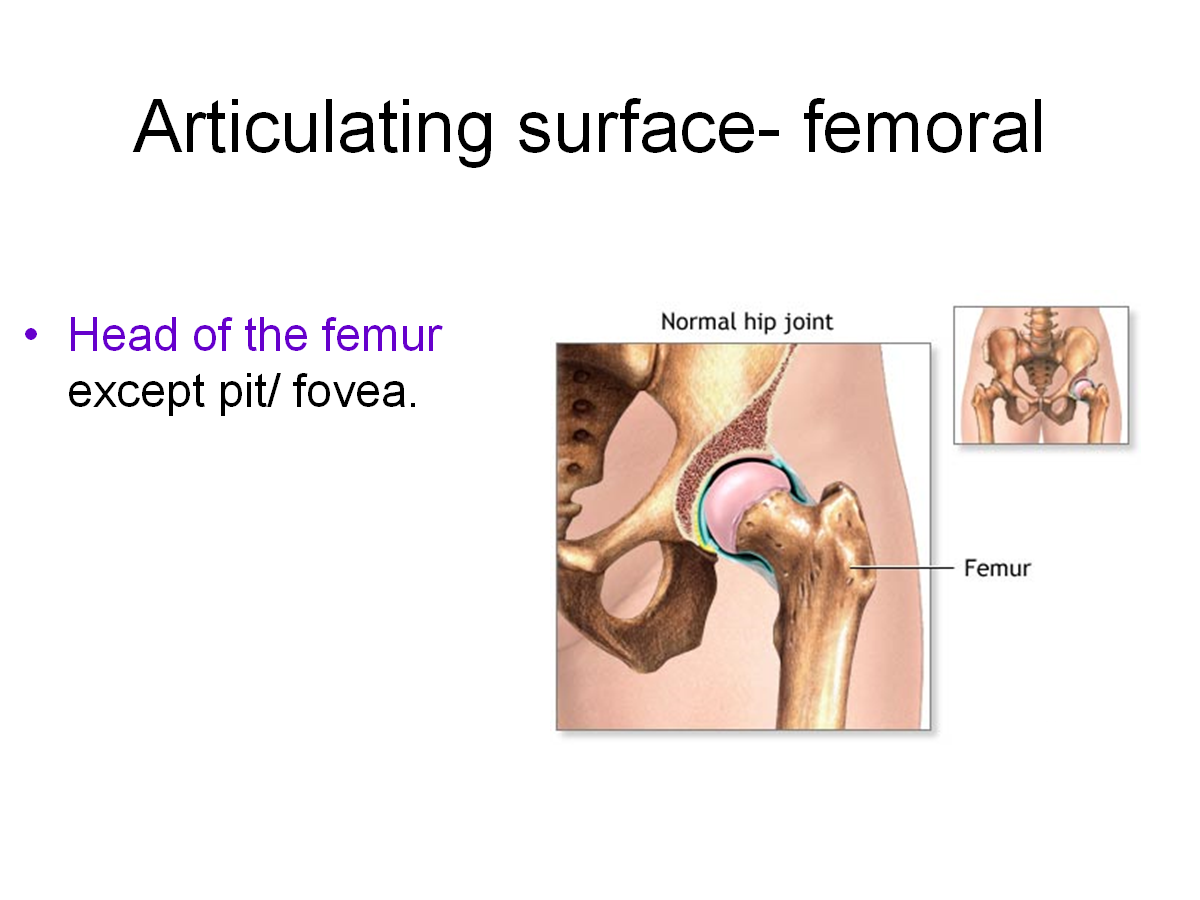

articulating surface.png (430.17 KiB) Viewed 287 times

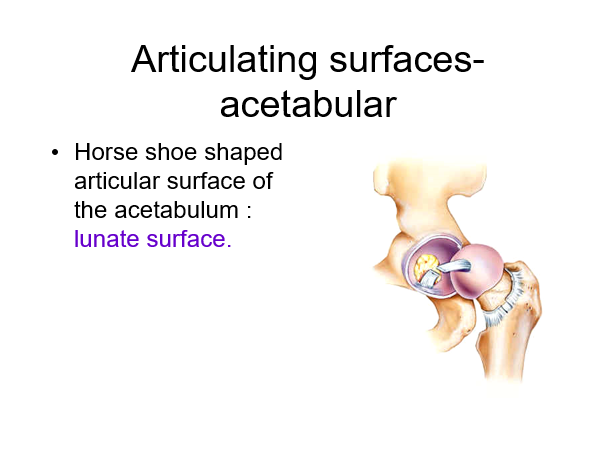

articulating surface - acetabular.png (64.87 KiB) Viewed 287 times

Ligaments

• Capsular ligament with synovial membrane.
• Ilio- femoral ligament.
• Pubo-femoral ligament.
• Ischio-femoral ligament.
• Acetabular labrum.
• Transverse acetabular ligament.
• Ligament of head of femur.

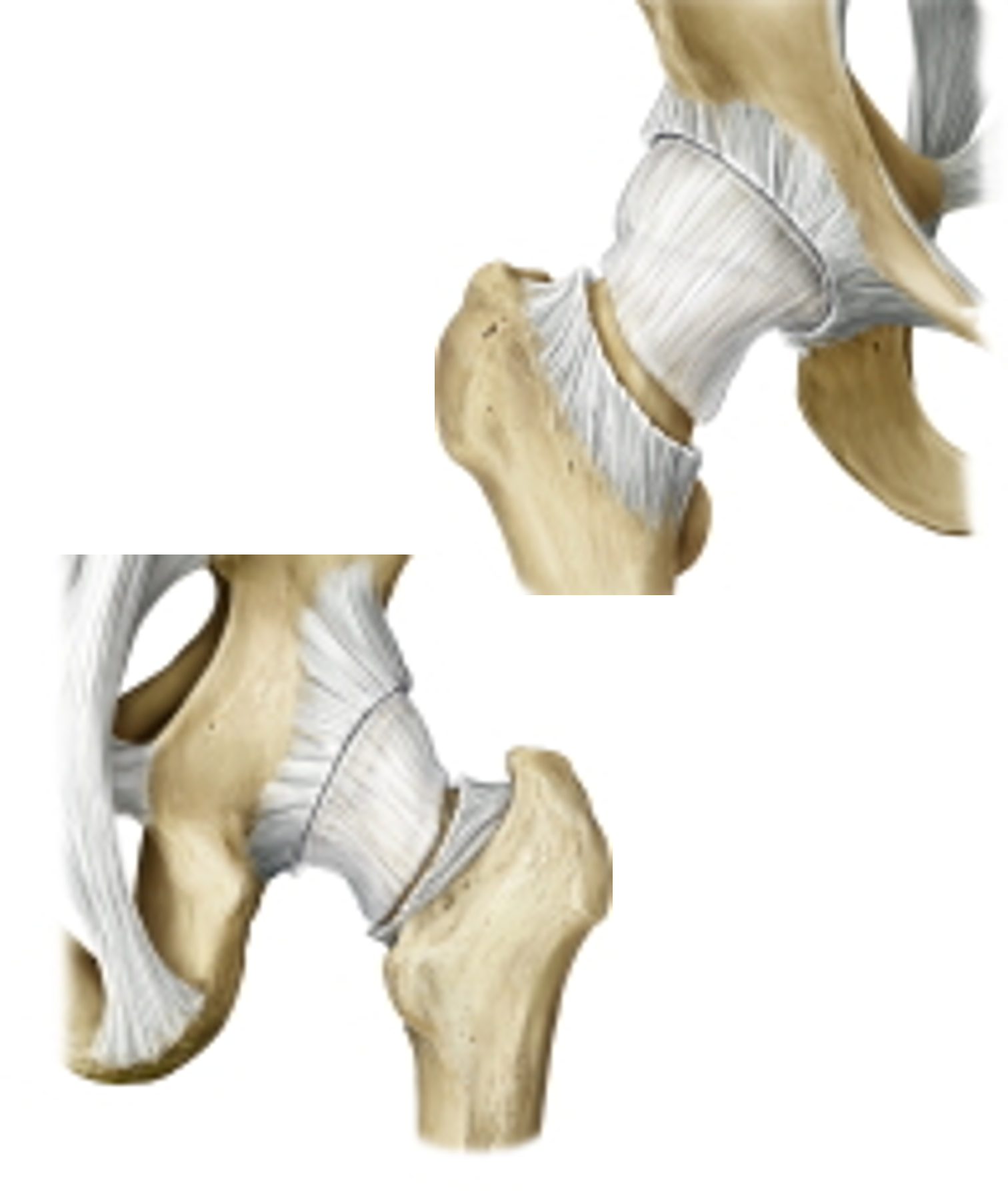

Capsule

Proximal

• Attached close to acetabular margin, extending 5-6 mm above labrum.


Distal

• Covers anterior surface of the femoral neck.
• Attached along the inter trochanteric line.
• Capsule fits like a tight collar along a line  which lies 1 cm medial to & parallel to the trochanteric crest.


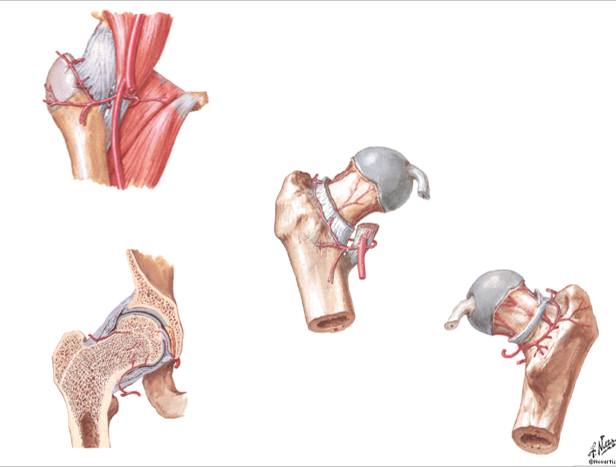

Retinacular fibers

• From the intertrochanteric line few fibers are reflected upward and medially along the neck beneath the synovial membrane.
• They convey blood vessels to the neck and head of femur.

retinacular fibres.png (2.1 MiB) Viewed 286 times

Zona orbicularis

• Deep fibers are circularly arranged.
• Spiral fibers of Ischiofemoral ligament are continuous.

zona orbicularis .png (140.76 KiB) Viewed 286 times

zona orbicularis2.png (83.13 KiB) Viewed 286 times

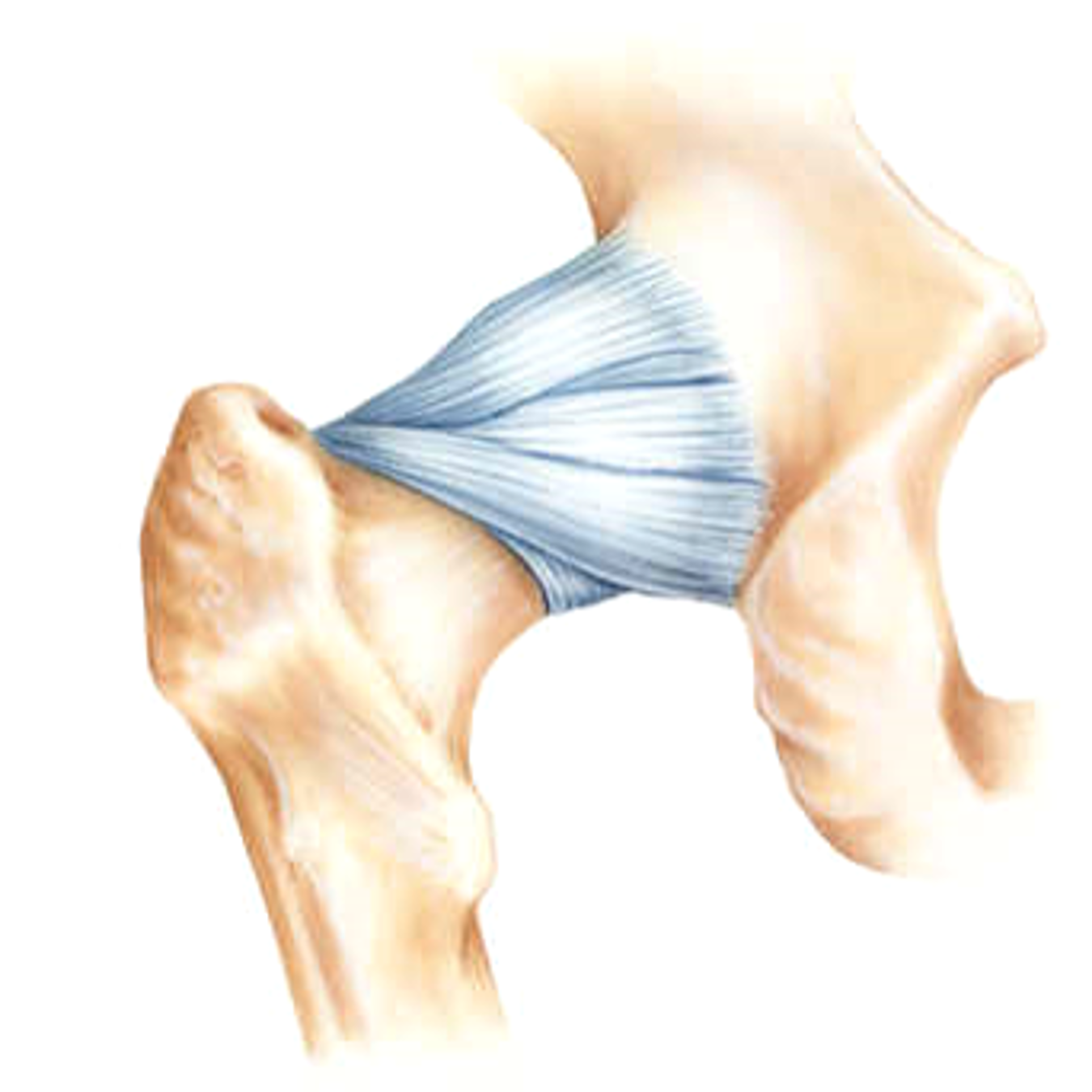

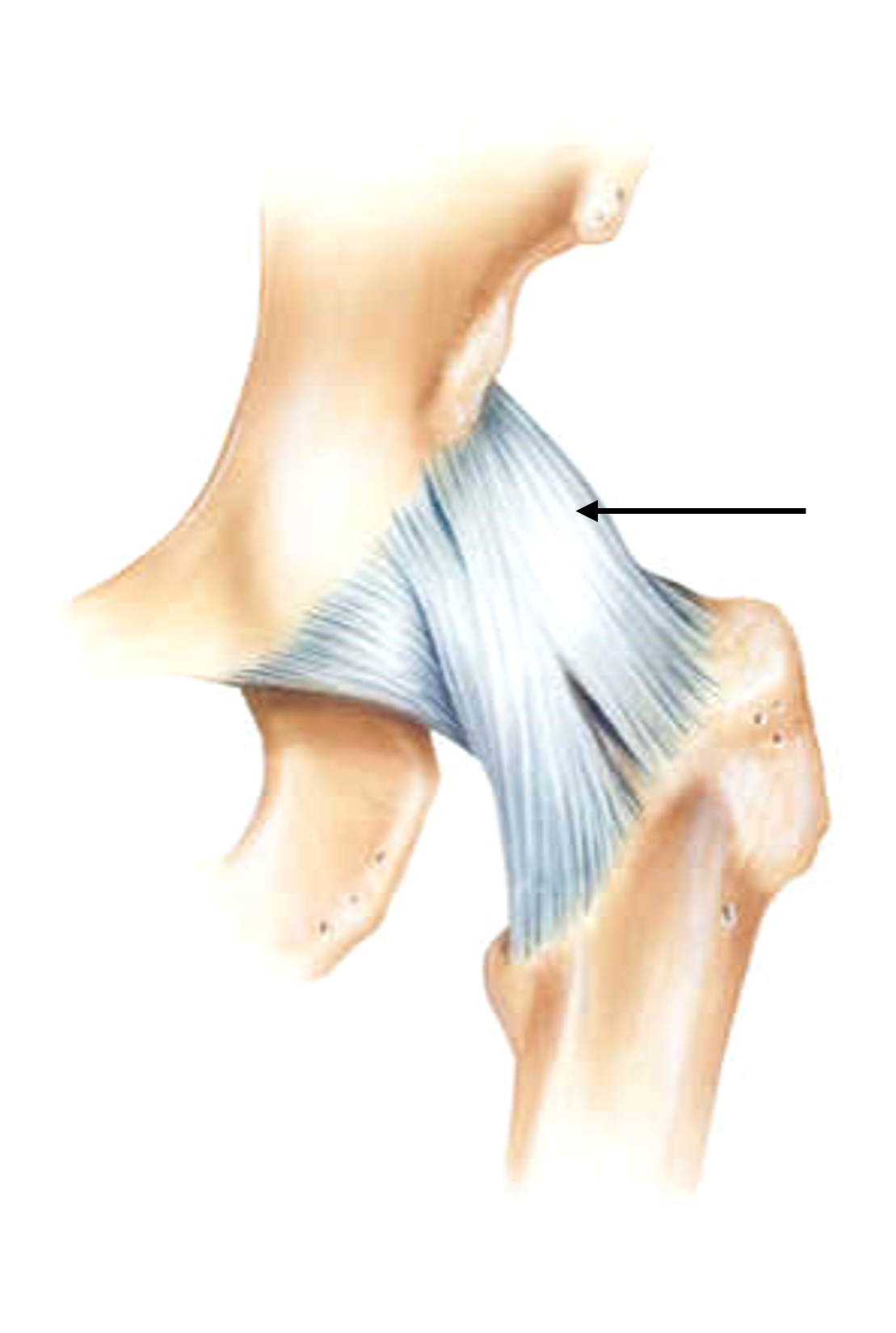

Iliofemoral ligament

• Ligament of Bigelow.
• Strongest ligament.
• Strengthens the anterior part of the capsule.
• Prevents hyper-extension of the hip joint.

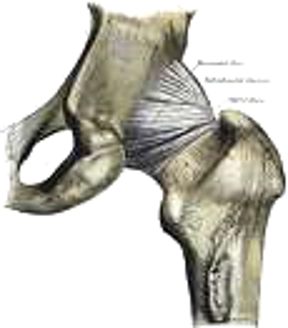

lliofemoral ligament.png (1.14 MiB) Viewed 286 times

Iliofemoral ligament

• Apex : anterior inferior iliac spine.
• Base : diverges as medial & lateral bands.
  • Medial band  : attached to lower part of I.T line.
  • Lateral band : attached to a tubercle in the upper part of Intertrochanteric line
  • Intermediate stratum :   thin, attached to the rest of the line

lliofemoral ligament.png (1.14 MiB) Viewed 286 times

Pubo-femoral ligament

• Is triangular.
• Attached to the ilio pubic eminence, superior pubic ramus, obturator crest and  obturator membrane.

pubo femoral ligament.png (1.12 MiB) Viewed 286 times

Pubo-femoral ligament

• Blends with the capsule,deep surface of medial band of ilio-femoral ligament.
• Prevents over abduction of the joint.

pubo femoral ligament.png (1.12 MiB) Viewed 286 times

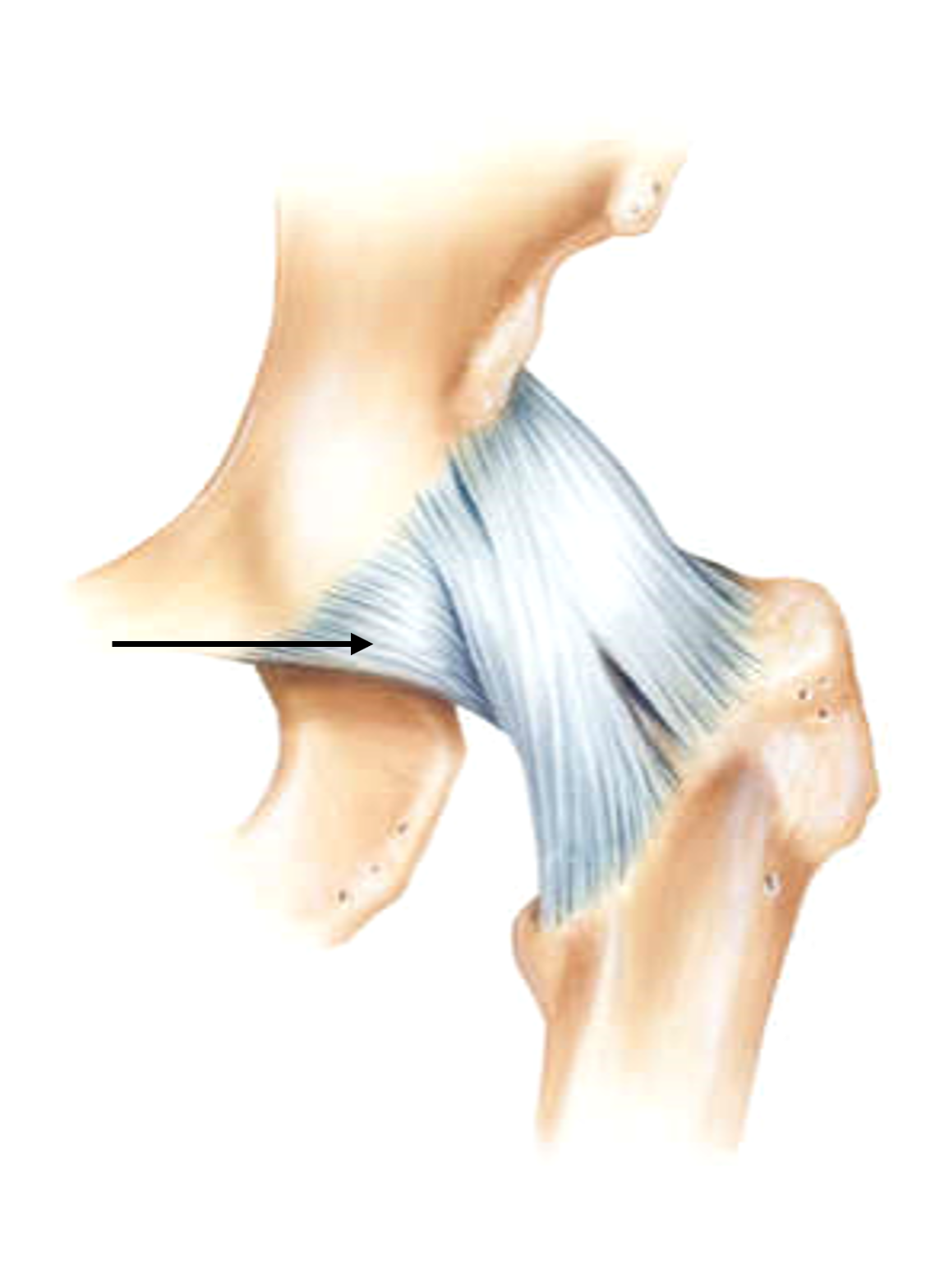

Ischio- femoral ligament

• Ligament of Bertin.
• Triangular band of strong fibers on the posterior side of the joint.
• From the ischium close to the acetabulum to blend with the circular fibers of the joint capsule and attach at the intertrochanteric line of the femur.

ischio femoral ligament.png (1.37 MiB) Viewed 286 times

Acetabular labrum

• A fibro - cartilagenous rim attached to the acetabular margin

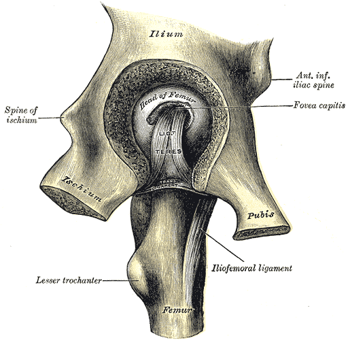

acetabular labrum.png (2.47 MiB) Viewed 286 times

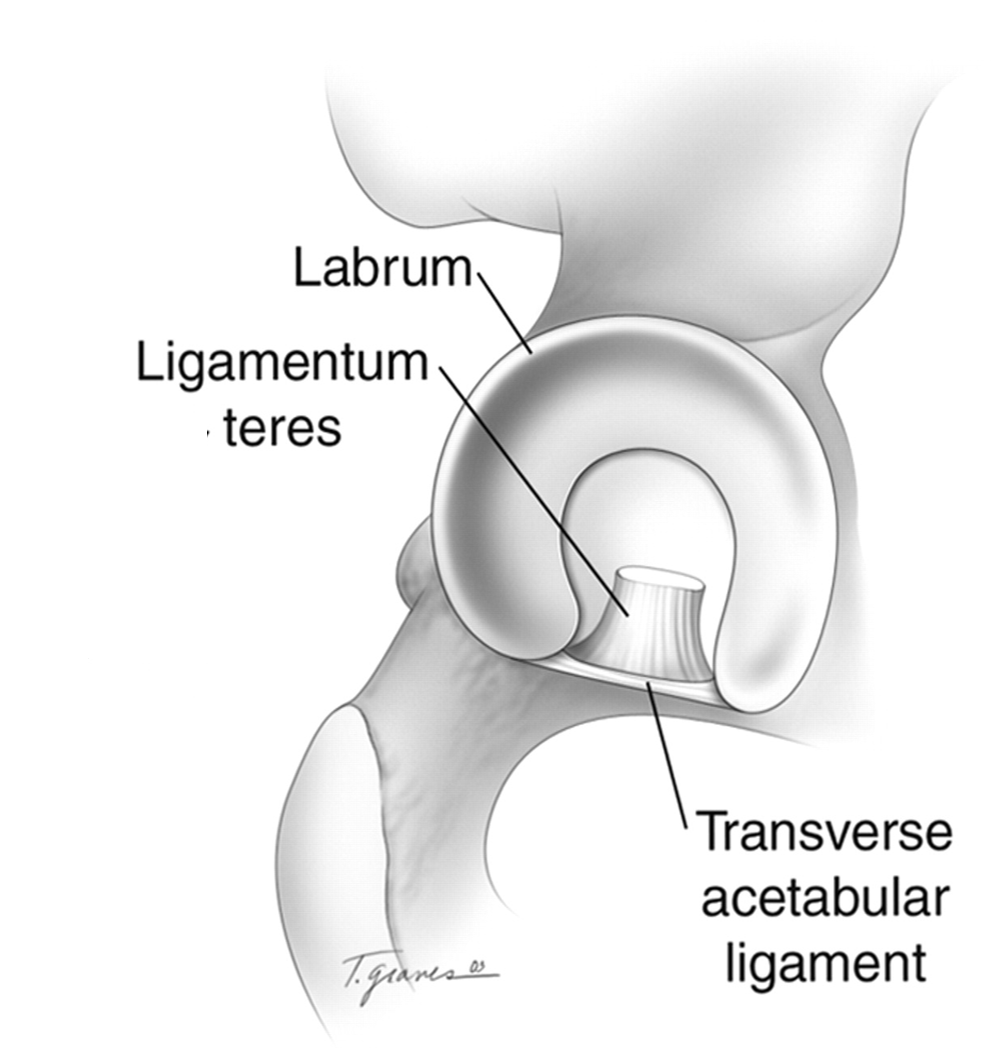

Transverse acetabular ligament

• Bridges the acetabular notch and blends with the base of the ligament of  the head of femur.

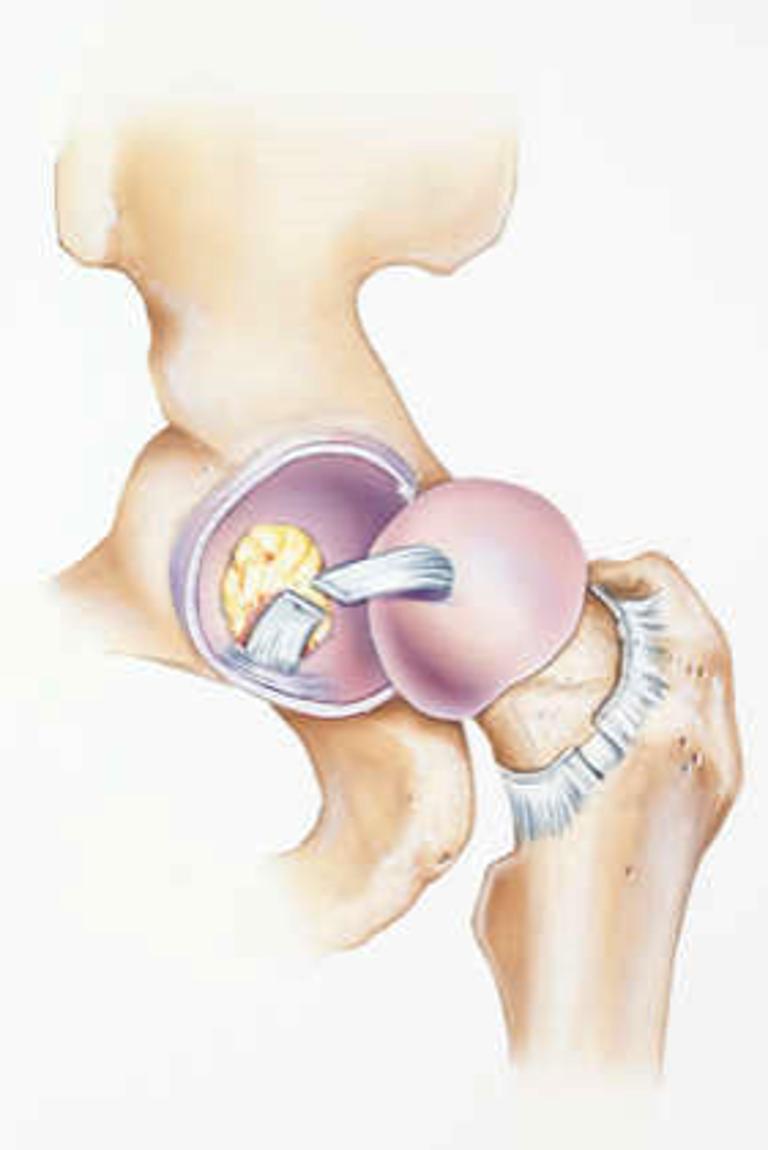

Ligament of head of femur

• Ligamentum teres femoris.
• Triangular fibrous band  -apex to fovea of femoral head
• Base to two ends of acetabular notch
• Blends with transverse Acetabular ligament.


Factors maintaining stability

• Deep insertion of femoral head into acetabulum.
• Acetabular labrum deepens the socket.
• Muscles around the joint.
• Thick capsule reinforced by 3 major ligaments and ligament of the head of femur.
• Increased stability causes decrease in range of movements.

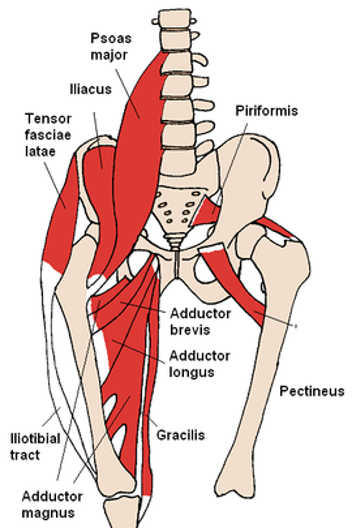

Relations of the joint

Anterior:

• Lateral part of pectineus.
• Psoas major
• Iliacus
• Straight head of rectus femoris
• Femoral vein, artery, nerve.


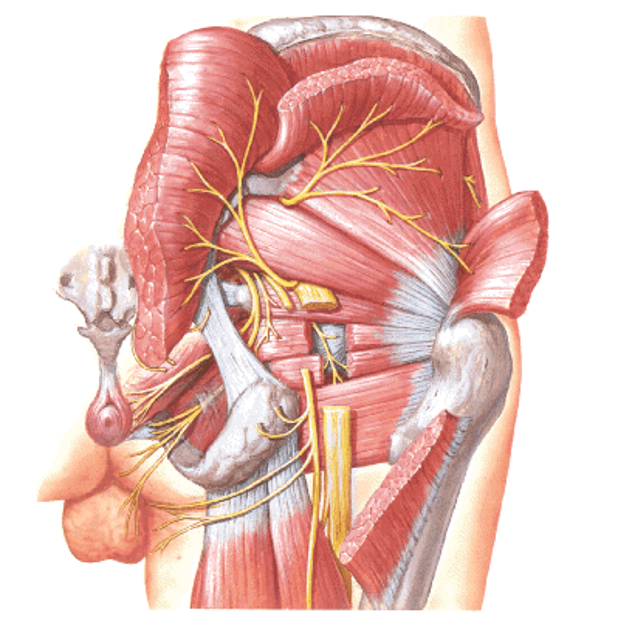

Relations of the joint

Posterior:

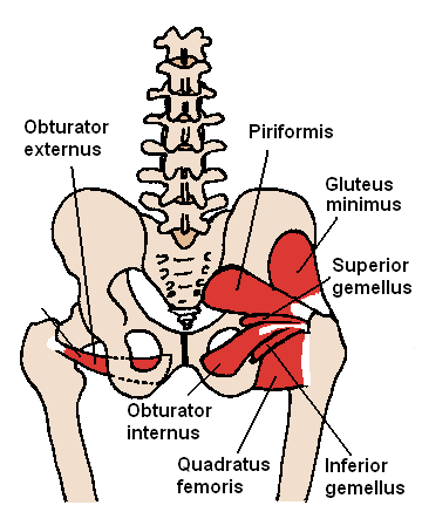

• Obturator Externus, Piriformis, Obturator Internus, gemelli, Quadratus Femoris, gluteus maximus.
• superior and inferior gluteal vessels and nerves.
• Sciatic nerve, Posterior cutaneous nerve of thigh, nerve to quadratus femoris.



Relations of the joint

Superior :

• Gluteus medius, minimus and overlying maximus

Inferior:

• Pectineus and Obturator Externus

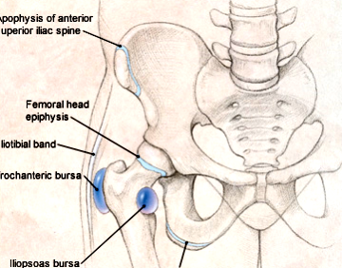

Bursae in relation to the Joint

• May communicate with sub tendinous Psoas bursa by a circular aperture between pubofemoral ligament & vertical band of iliofemoral ligaments.




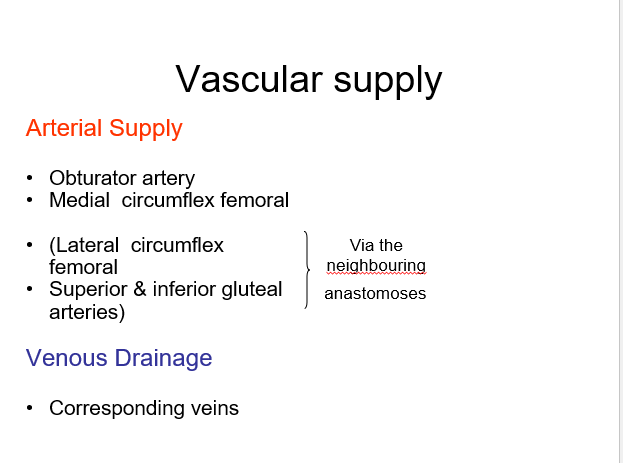

Lymphatic Drainage

• Anterior part drains into deep inguinal nodes
• Medial and posterior aspect run with obturator and gluteal arteries respectively and drain into internal iliac nodes

Nerve supply

• Femoral nerve (muscular. Br.)
• Obturator nerve
• Accessory Obturator nerve
• Superior Gluteal nerve
• Nerve to Quadratus femoris

Movements

• Flexion
• Extension
• Abduction
• Adduction
• Medial rotation
• Lateral rotation
• Circumduction

Flexion and Extension
(around transverse axis)

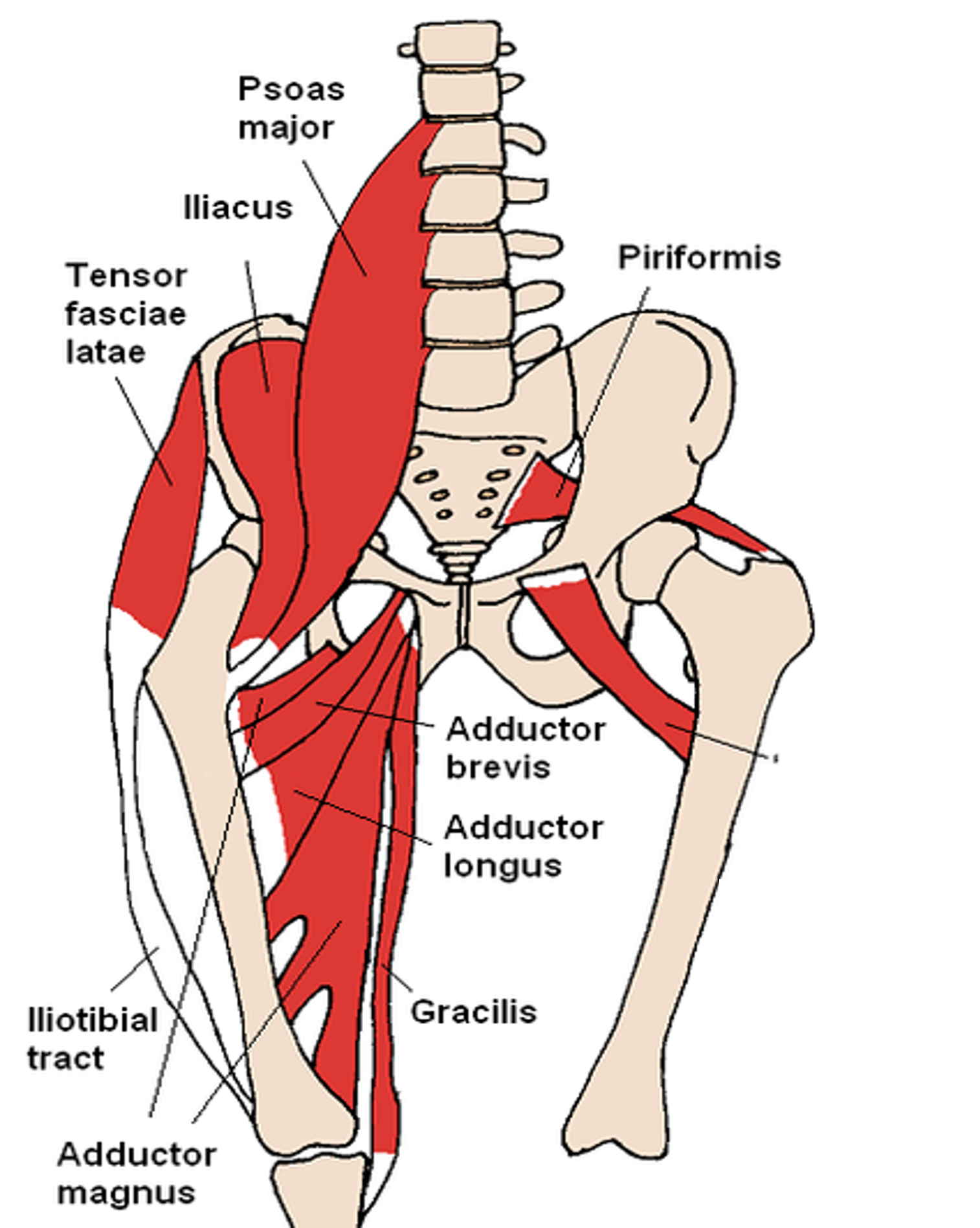

• FLEXION :  Ilio Psoas---Prime mover

                             Pectineus, Rectus Femoris, Sartorius
                             Adductor Longus, Brevis, Magnus, Gracilis

• EXTENSION: Gluteus Maximus

                                  Hamstring muscles

Abduction and Adduction
(around anteroposterior axis)

• ADDUCTION : Adductor Longus, Adductor Brevis,

                                    Adductor part of Adductor Magnus
                                    Gracilis

• ABDUCTION : Gluteus Maximus,

                                    Gluteus Medius,
                                    Gluteus minimus
                                     Tensor Fasciae latae , Sartorius

Medial and Lateral rotation
(around vertical axis)

• MEDIAL ROTATION : Gluteus  Medius,

                                               Gluteus Minimus,
                                               Tensor Fasciae Latae

• LAT. ROTATION : Gluteus Maximus

                                         Short Lateral rotators-
                                         Piriformis,obturator internus
                                        and externus, gemelli,
                                        quadratus femoris

Applied anatomy

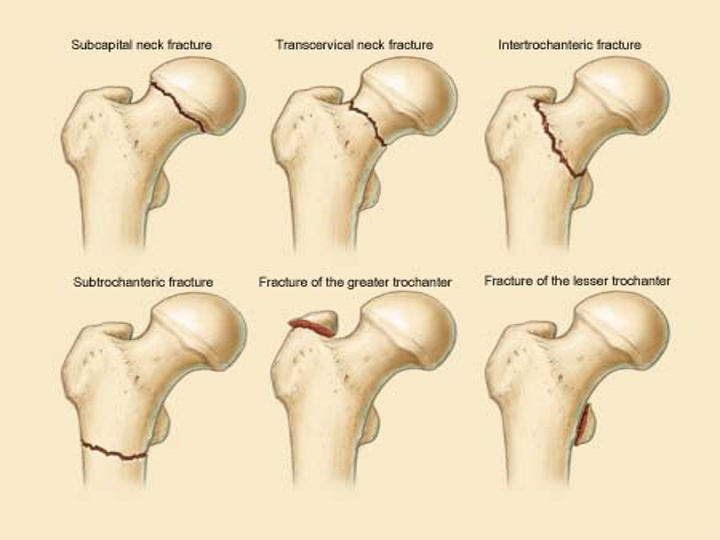

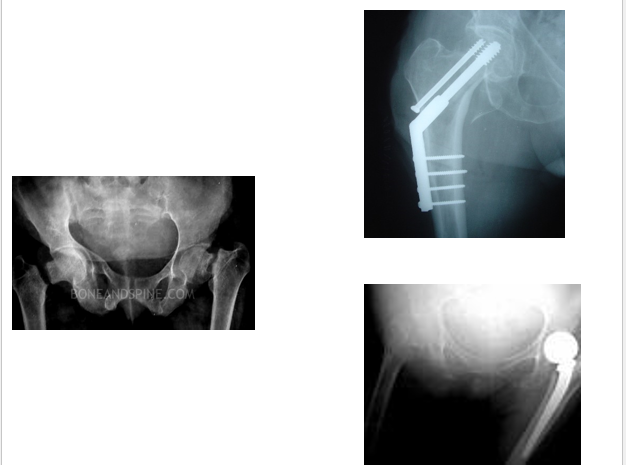

• Fracture of neck of femur

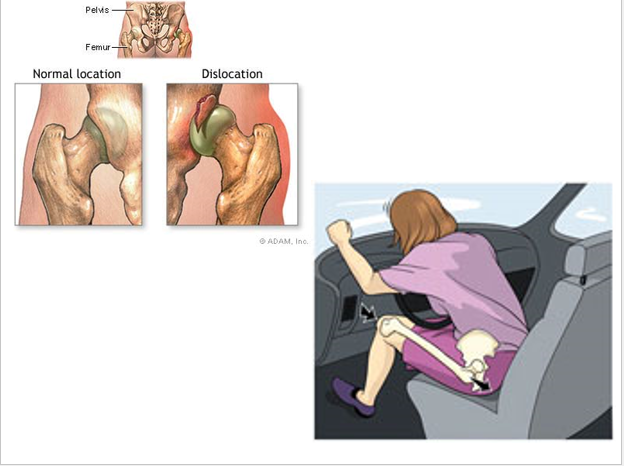

• Dislocation of hip joint.
  • Congenital
  • Acquired

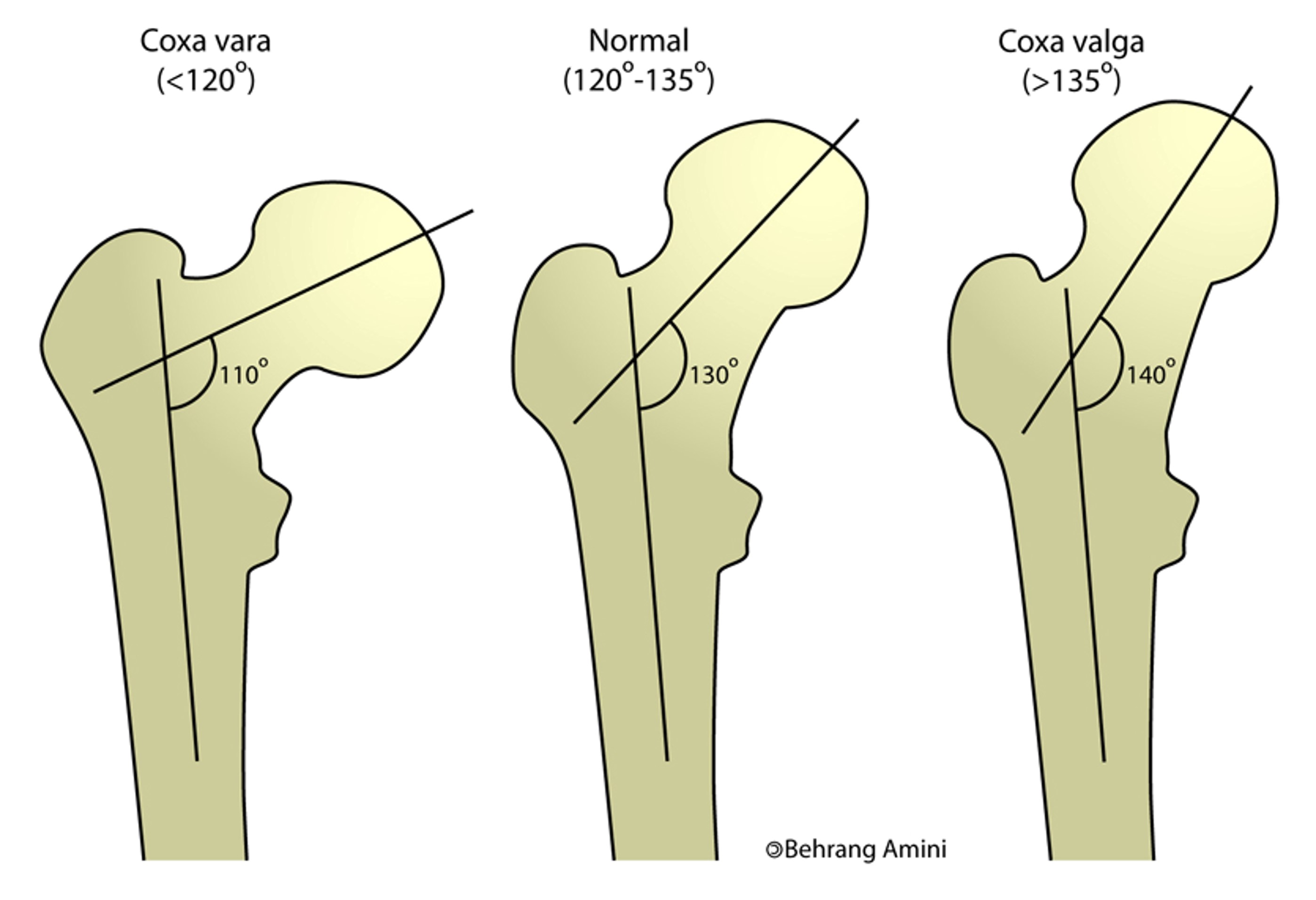

• Coxa vara & coxa valga.

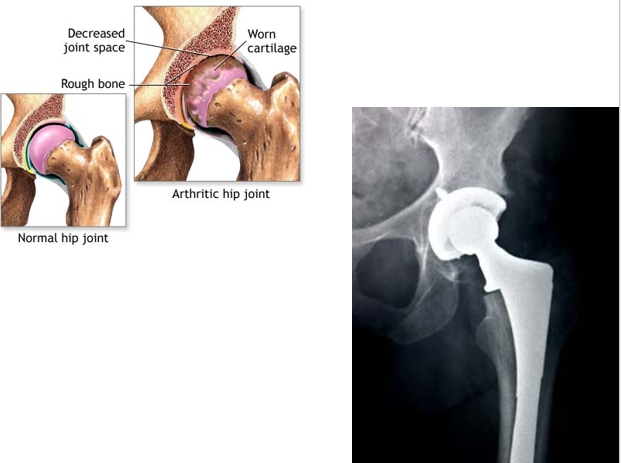

• Arthritis of hip joint

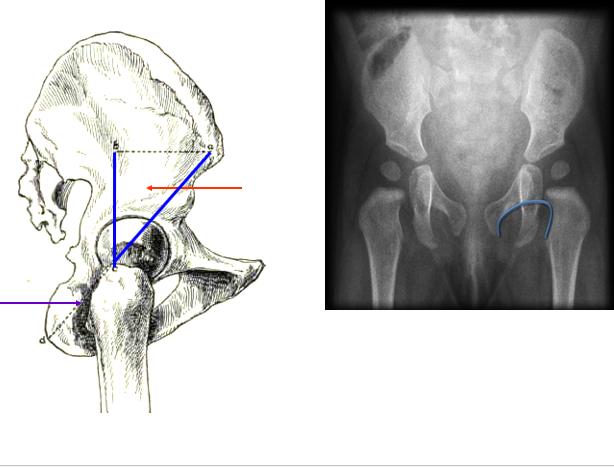

• Measurements
