Electrical Power System

An Electrical Power System is a network of electrical components and devices designed to generate, transmit, distribute, and utilize electrical power. Power systems are essential for supplying electricity to homes, businesses, industries, and other consumers. The system ensures that electrical power is generated efficiently, transmitted over long distances, and distributed to the end-users reliably.



Components of an Electrical Power System:

1. Generation:
   • Power Plants: Electricity is generated at power stations or plants. These can be thermal (coal, gas), nuclear, hydroelectric, solar, wind, or other renewable sources.
   • Generators: The mechanical energy (from turbines driven by steam, water, or wind) is converted into electrical energy by generators.
2. Transmission:
   • Transmission Lines: These are high-voltage lines that carry electricity over long distances. The high voltage helps minimize energy loss during transmission.
   • Substations: These facilities step up or step down the voltage using transformers. They also help with switching and protecting the grid.
3. Distribution:
   • Distribution Lines: After stepping down the voltage at substations, distribution lines carry electricity to homes, industries, and businesses at lower voltages.
   • Distribution Transformers: These step down the voltage further, ensuring the right amount of power is supplied to consumers.
4. Protection and Control:
   • Circuit Breakers and Relays: Protect the system from faults like short circuits or overloads, ensuring the stability of the power grid.
   • Control Systems: Modern grids incorporate control systems, including SCADA (Supervisory Control and Data Acquisition), to monitor and manage power generation, transmission, and distribution.
5. End-Users:
   • Consumers (households, industries, and businesses) are the final recipients of electricity, utilizing it for lighting, machinery, heating, and other applications.

Types of Power Systems:

1. Standalone (Isolated) Systems:
   • Small-scale systems, such as generators supplying power to a single facility or remote area.
2. Grid-connected Systems:
   • Large-scale power systems where electricity is generated, transmitted, and distributed over a vast geographical area. Grids can be interconnected for enhanced reliability and efficiency.
3. Smart Grids:
   • Modern grids that incorporate digital technology, such as IoT sensors, AI, and automated control, to enhance reliability, efficiency, and sustainability. They allow for real-time monitoring, demand-response management, and integration of renewable energy sources.

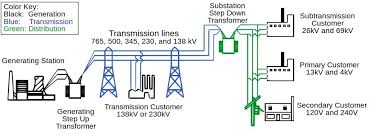

Electrical Power System.jpg (10.67 KiB) Viewed 253 times

[/b][/size][/color]

Advantages of Electrical Power Systems:

1. Reliable Power Supply:
   • Power systems ensure continuous electricity supply to meet consumer needs, from residential to industrial applications.
2. Energy Efficiency:
   • Efficient power transmission and distribution minimize energy losses, ensuring that the maximum amount of generated power reaches consumers.
3. Support for Economic Growth:
   • A well-established power system supports industries and businesses, driving economic development and improving the standard of living.
4. Renewable Integration:
   • Modern power systems can integrate renewable energy sources (wind, solar, hydro) into the grid, promoting sustainability and reducing carbon footprints.
5. Grid Stability and Security:
   • Advanced protection and control systems maintain grid stability, even during peak demand periods or when faults occur.

Disadvantages of Electrical Power Systems:

1. High Initial Investment:
   • Establishing power plants, transmission lines, substations, and other infrastructure requires significant capital investment.
2. Energy Losses:
   • Although transmission lines are designed to minimize losses, energy is still lost as heat during long-distance transmission due to resistance in conductors.
3. Environmental Impact:
   • Conventional power plants (coal, oil, gas) produce pollutants, contributing to air and water pollution. Nuclear plants have concerns about radioactive waste disposal.
4. Grid Vulnerability:
   • Power grids can be vulnerable to natural disasters (storms, earthquakes) or cyberattacks, causing large-scale outages.
5. Dependence on Non-Renewable Sources:
   • Many regions still rely heavily on fossil fuels, which are finite resources and contribute to environmental degradation.

Future Trends in Electrical Power Systems:

1. Renewable Energy Integration:
   • The increased integration of solar, wind, hydro, and other renewable sources into the grid will help reduce dependence on fossil fuels and lower greenhouse gas emissions.
2. Energy Storage Systems:
   • To address the intermittent nature of renewable energy sources like solar and wind, energy storage systems such as batteries will become more prevalent.
3. Smart Grids and IoT:
   • The adoption of smart grids with IoT technology will allow for more efficient energy use, better fault detection, and improved load management.
4. Decentralized Power Generation:
   • Microgrids and distributed energy resources (DERs) will allow for localized power generation, reducing transmission losses and improving grid resilience.
5. Electric Vehicles (EVs) Integration:
   • As electric vehicles become more widespread, integrating EVs into the power system will help balance demand, especially with bi-directional charging (V2G) where EVs can store and feed back power to the grid.
