Advanced sensors and measurement technologies form the backbone of modern Instrumentation and Control Engineering. These systems are critical for accurately monitoring and controlling physical, chemical, and biological parameters in a wide range of applications. Below is a detailed breakdown of this topic:
MEMS and NEMS Sensors
Micro-Electromechanical Systems (MEMS) and Nano-Electromechanical Systems (NEMS) are compact, highly sensitive devices that integrate mechanical and electronic components at micro and nano scales. Key Features:
- High Sensitivity: Capable of detecting minute changes in environmental conditions.
- Compact Size: Ideal for portable and embedded applications.
- Low Power Consumption: Essential for battery-operated devices.
- Mass Production: Cost-effective due to batch fabrication techniques.
- MEMS and NEMS Sensors.jpg (11.86 KiB) Viewed 320 times
- Automotive: Airbag deployment, tire pressure monitoring, and accelerometers.
- Healthcare: Microfluidics for drug delivery and biosensors for diagnostics.
- Aerospace: Inertial measurement units for navigation.
- IoT: Environmental monitoring and wearable technologies.
Optical sensors use light to detect and measure physical properties like displacement, velocity, pressure, and temperature. Technologies:
- Fiber-Optic Sensors: Utilize light traveling through fiber-optic cables.
- Interferometers: Measure changes in light interference patterns for high precision.
- LIDAR: Light Detection and Ranging, used for mapping and object detection.
- Non-invasive measurement.
- Immune to electromagnetic interference.
- Suitable for harsh environments like high temperatures or corrosive atmospheres.
- Medical: Pulse oximeters and endoscopy.
- Industrial: Vibration monitoring and leak detection.
- Environmental: Air and water quality measurement.
- Autonomous Vehicles: LIDAR for obstacle detection.
Smart sensors are equipped with embedded microprocessors and communication capabilities, enabling them to process data locally and integrate seamlessly with control systems.
- Smart Sensors.jpg (7.73 KiB) Viewed 319 times
- Self-Calibration: Adjusts itself to maintain accuracy.
- Fault Detection: Identifies and reports malfunctions.
- Energy Efficiency: Optimized for low power usage.
- Data Processing: Performs computations like filtering or averaging directly on the sensor.
- Industrial Automation: Real-time monitoring of equipment health.
- Home Automation: Smart thermostats and lighting systems.
- Healthcare: Continuous glucose monitors and fitness trackers.
- Agriculture: Soil moisture and nutrient monitoring.

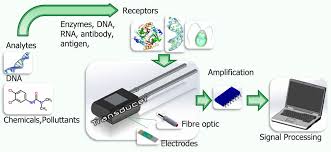

Biosensors are analytical devices that combine biological components (e.g., enzymes, antibodies) with a physicochemical detector to measure specific biological analytes.
- Biosensors.jpg (8.91 KiB) Viewed 319 times
- Bioreceptor: Recognizes the target analyte.
- Transducer: Converts the biological response into an electrical signal.
- Signal Processor: Analyzes and displays data.
- Electrochemical Biosensors: Measure electrical changes due to biochemical reactions.
- Optical Biosensors: Use fluorescence, absorbance, or light scattering.
- Piezoelectric Biosensors: Detect mass or viscosity changes on a surface.
- Medical Diagnostics: Glucose monitoring, COVID-19 antigen detection.
- Food Safety: Detecting pathogens and contaminants.
- Environmental Monitoring: Measuring pollutants and toxins.
- Biotechnology: Drug discovery and development.
- Quantum Sensors: Leverage quantum phenomena like entanglement and superposition for ultra-high precision measurements.
- Applications: Gravitational wave detection, GPS systems, and atomic clocks.
- Graphene-Based Sensors: Exploit the extraordinary electrical, mechanical, and thermal properties of graphene.
- Applications: Gas sensing, biosensing, and flexible electronics.
- Wearable Sensors: Integrated into fabrics or accessories for real-time health monitoring.
- Examples: Smartwatches, fitness bands, and electronic skin.
- Soft Sensors: Flexible and stretchable sensors made from materials like silicone or hydrogels.
- Applications: Robotics, prosthetics, and wearable devices.
Advanced sensors often utilize cutting-edge measurement techniques to achieve high accuracy and reliability.
A. Non-Contact Measurement
- Ultrasound: Measures distance and speed using sound waves.
- Laser Displacement: Measures distances and surface profiles using laser beams.
- Infrared Sensors: Detect heat signatures and temperature.
Sensors capable of measuring multiple parameters simultaneously, such as pressure, temperature, and humidity, reducing the need for separate instruments.
C. Self-Powered Sensors
- Sensors that harvest energy from their surroundings, such as vibration, heat, or light.
- Applications: Remote and inaccessible locations where battery replacement is challenging.
Challenges:
- Miniaturization: Balancing performance and size for compact sensors.
- Interference: Mitigating noise and environmental disturbances.
- Cost: Reducing manufacturing costs while maintaining accuracy.
- Data Overload: Managing and processing vast amounts of sensor data in real time.
- Integration with Artificial Intelligence: For autonomous decision-making.
- Deployment in Edge Computing: Reducing latency by processing data closer to the source.
- Development of Flexible and Wearable Electronics: Enhancing user interaction and comfort.
- Progress in Quantum Sensing: Revolutionizing precision measurements.
- Healthcare: Patient monitoring, medical imaging, and diagnostics.
- Energy: Monitoring wind turbines, solar panels, and pipelines.
- Transportation: Autonomous vehicles, rail safety, and aviation systems.
- Environmental Monitoring: Tracking air and water quality, and detecting natural disasters.
- Industrial Processes: Quality control, predictive maintenance, and automation.
